Modea Pro
MP-MH170SW

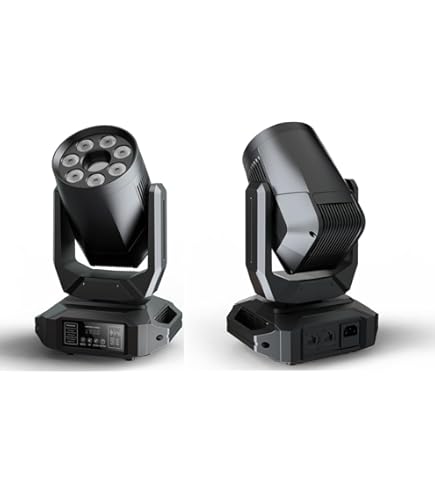

- MODEA PRO 180W LED Beam & Wash Moving Head
- Input Voltage: AC 100–250 V, 50/60 Hz
- Total LED Output: 170 W
- Main LED Light Source: 100 W LED
- Wash Light Source: Rotating head with 7 × 10 W RGBW (4-in-1) LEDs
- LED Lifetime: Approximately 50,000 hours
- Color Wheel: 7 colors + open (white)
- Gobo Wheel: 5 metal gobos + 2 glass gobos + open
- Prism: Pentaprism
- Beam Angle: 25°
- Dimming: 0–100% linear dimming
- Electronic Strobe: 0–25 flashes per second with adjustable speed
- Control Protocol: Standard DMX512 via RJ45 interface
- Operating Modes: Stand-alone, DMX, Master/Slave, Sound Active (automatic effects synchronized with music)
- DMX Channels: 14 or 19 channels
- Dimensions: 180 × 210 × 340 mm (L × W × H)
- Net Weight: 3.5 kg
