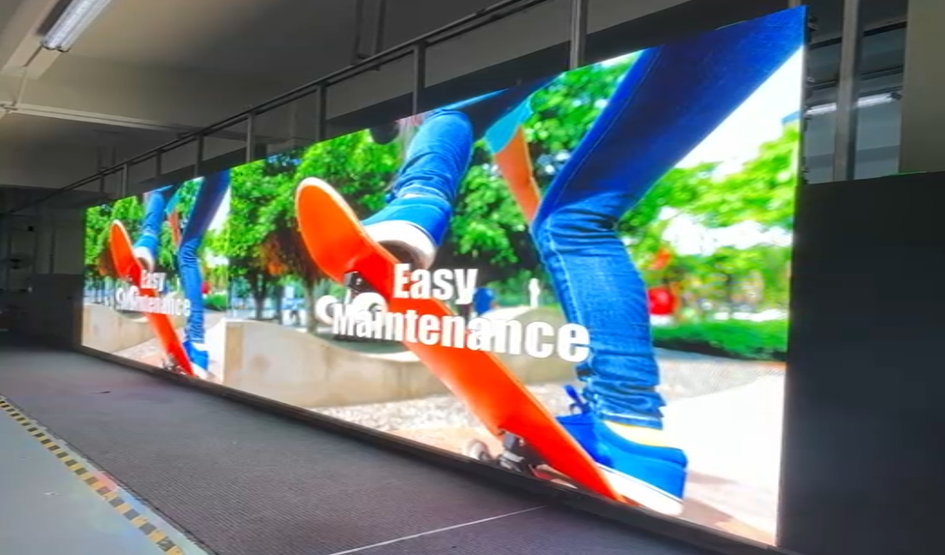

LM-EO3.9 Economi rear service Outdoor Rental LED screen Quotation

Application: Outdoor rental, rear service

Key Specifications

• Pixel Pitch: 3.9 mm

• LED Type: SMD 1921

• Brightness: 4,500 – 5,000 nits

• Recommended Viewing Distance: ≥ 2 m

• Viewing Angle: 140° (H) / 120° (V)

Dimensions & Structure

• Module Size: 250 × 250 mm

• Module Resolution: 64 × 64 pixels

• Cabinet Size: 500 × 1000 mm

• Cabinet Resolution: 128 × 256 pixels

• Cabinet Material: Die-casting aluminum

• Cabinet Weight: approx. 13 kg

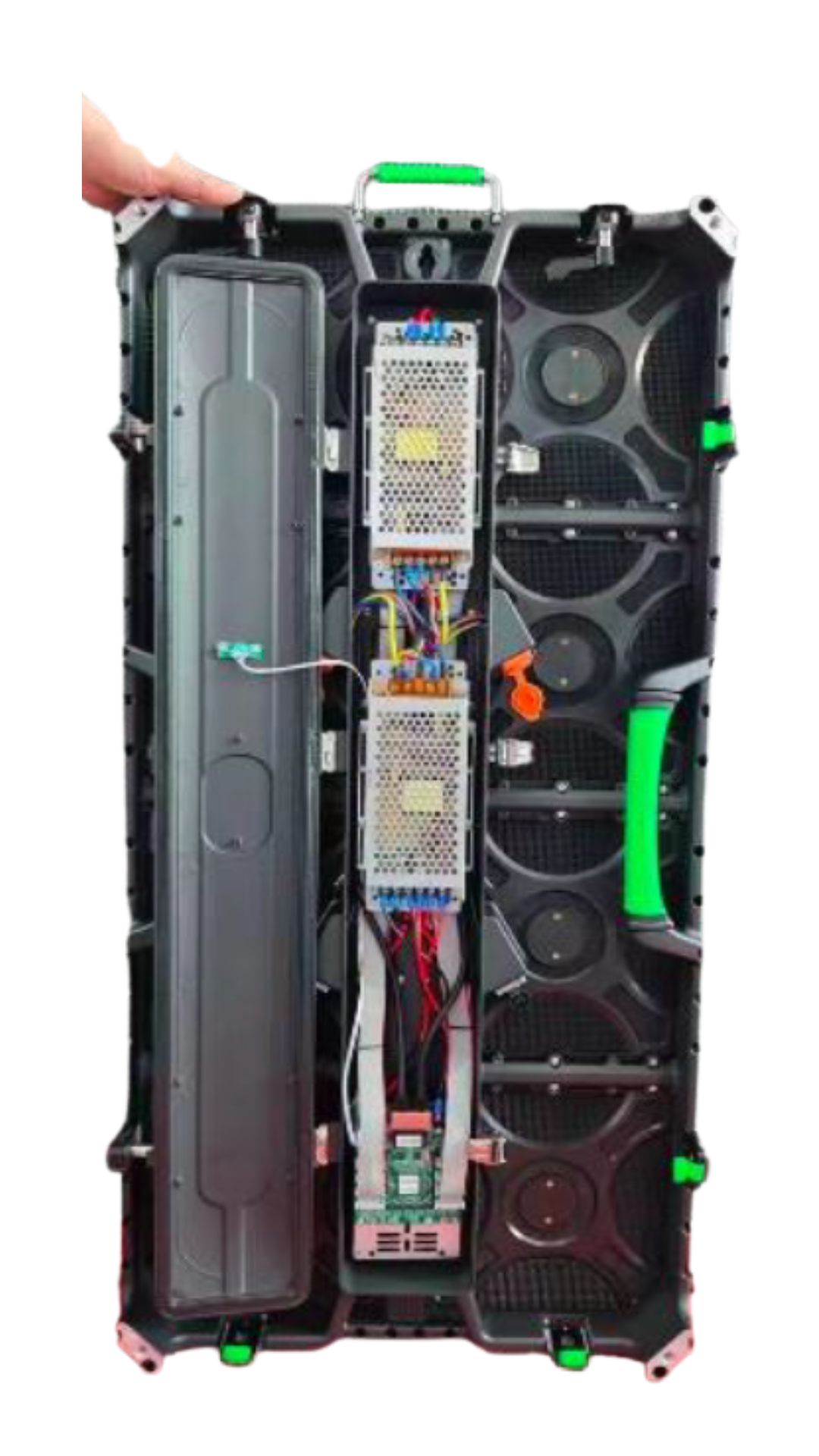

• Maintenance: Rear service

Performance

• Driving Method: 1/16 scan

• Lifespan: 100,000 hours

• Power Consumption:

  • Max: 750 W/m²

  • Average: 250 W/m²

Protection & Operating Conditions

• Ingress Protection: IP65 (front) / IP54 (rear)

• Operating Temperature: -20°C to +40°C

• Humidity: 0 – 90%

Electrical & Control

• Input Voltage: AC 100–240 V (±10%)

• Frequency: 50 / 60 Hz

• Control Method: Synchronization display (to computer display)

• Control System: All in one video processor+ Branch controller (receiving card)

• Video Inputs: DVI, HDMI, PAL/NTSC/SECAM;S -Video;VGA;RGB;Composite
  Video; SDI etc (Refer to Video processor)

• Interface: Standard Ethernet

• Max Transmission Distance: < 100 m
